EELS curve fitting#

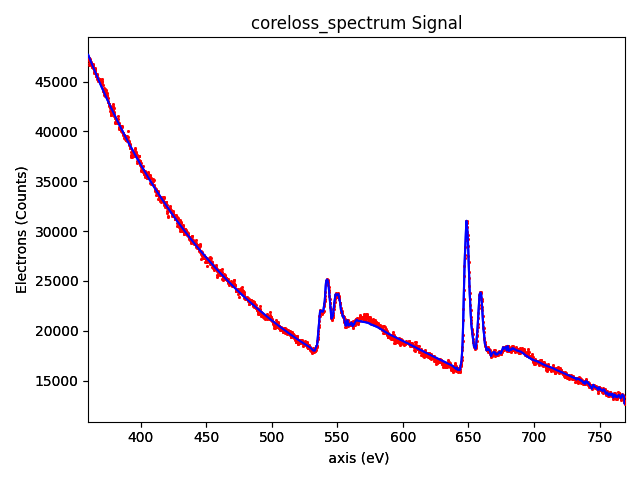

Performs curve fitting to an EELS spectrum, plots the result and saves it as png file.
